ume series





ume  -  a cost-effective approach to 2D Wire Forming that delivers the performance demanded in today’s market.



Developed to reduce machine cost without sacrificing versatility, quality, or production.



The ume design is based on the proven ultimat  um and umw models, and features the ultimat closed die cutting system that produces

a square, burr-free cut.

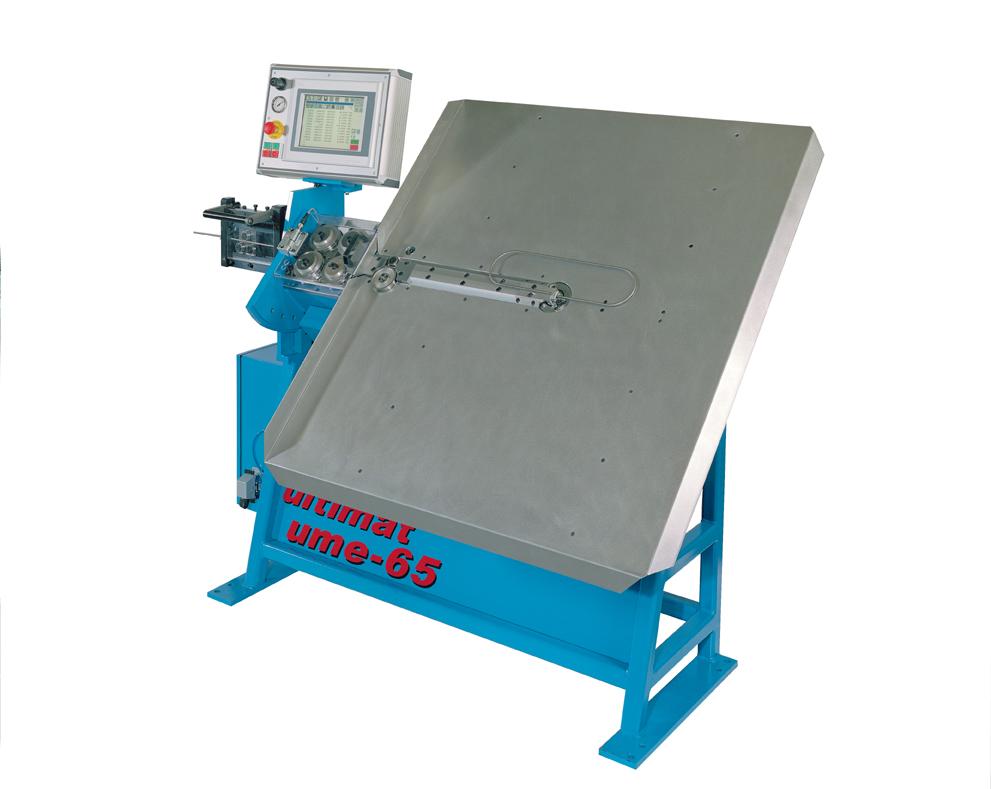

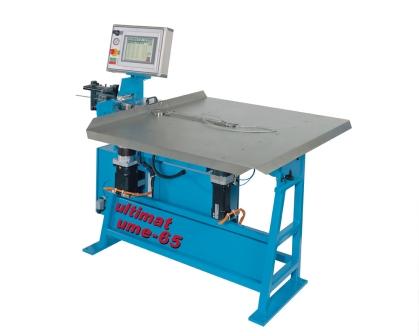

A tilting table is standard equipment, making the ume extremely versatile and capable of producing small to large wire forms, including spirals.







Model

Wire Range

Max. Frame Size

ume-40

2.00 - 4.00mm

.080" - 0.162"

600 x 600mm

24" x 24"

ume-65

2.00 - 6.50mm

.080" - 0.250"

600 x 600mm

24" x 24"

ume-80

3.00 - 8.00mm

0.120" - 0.315"

1000 x 1000mm

39" x 39"

ume-100

3.00 - 10.00mm

0.120" - 0.394"

1000 x 1000mm

39" x 39"

Features

bullet

Fast cycle times for frames direct from coil

bullet

Repeatability ±0.05°on bends and  ± 0.1mm (0.004") of feed length

bullet

Perfect Square Clean cut wire ends

bullet

Suited for prototypes to low or high volume production runs

bullet

Fast changeover from one wire diameter to another

bullet

Easy to use Windows style software enables parts to be programmed whilst running production

bullet

      No Special tooling required for most applications

bullet

      Software allows for “generated bending” of large radii

bullet

Production rates shown in real time

bullet

Part programmes can be entered in "Metric" or "English" units

bullet

All machines designed and manufactured at our facilities in the U.K.

bullet

Prompt delivery of spare parts

bullet

2 year parts warranty
